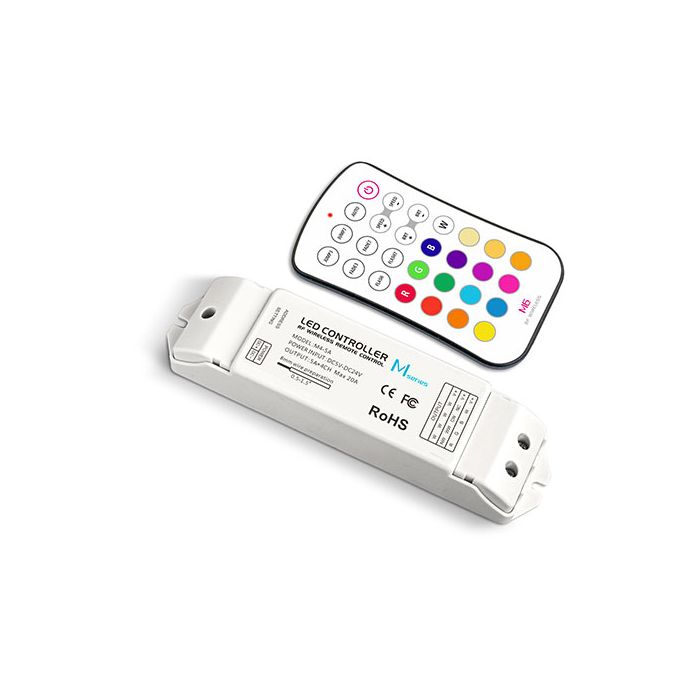

M4-5A wireless receiver + M1 M2 M3 M4 M5 M6 M7 M8 RF control remote

$37.95
In stock
SKU
2106
  • Buy 30 for $34.95 each and save 8%
  • Buy 100 for $32.95 each and save 13%
  • Buy 300 for $29.95 each and save 21%

Made in Zhuhai, genuine version, reliable quality with 5 years warranty, not copycat

Direct from factory, good price

M4-5A RGBW 4CH receiving controller with M6 is default choice, the other remote is optional

M series control remote also can work with RF receiver M4-CC, M3-3A

Click here to view the details of M series control remotes

mini led controller
More function and comprehensiveness.


Extended new series products are based on the Mini series controllers, increase RGBW 4CH control, workable for dimming, Color temperature, RGand RGBW. And the output power of receiver is higher.

4096 / road grey scale (most of them is 256 in the market), high grayscale performance is more outstanding, the light is more gentle, dynamic changing modes become more rich and colorful. With innovative technology design: One receiver compatible with seven different functions of the remote control (patent technology), that is use one receiver can experience dimming, color temperature and RGB controlled, which can satisfied the different demands of client.

M series with extremely high performance and creative design. They can experience humanized design concept when traders in sales, engineers in installation and the clients in using.



M4-5A RGBW 4 channels receiver can be paired with a remote control. To learn a new ID simply press the learn button (quick press) on the receiver, then any button on a remote. The receiver is then matched to that remote control. To cancel an ID press the learn button for 5 seconds.

The controller can control a total of 240 watts of LED strip running at 12V or 480 Watts of LED strip running at 24V. We recommend that the receiver can control up to 17m of our 12V RGBW LED strip.

Each 5 metres of LED strip must be connected in parallel with the colour controller not in series. If additional LED strip needs to be powered exceeding the above limits the introduction of an RGBW amplifier coupled with a power supply is required. An infinite amount of LED strip can be added to the circuit when using amplifiers.



M1, M2, M3, M4, M5, M6, M7, M8 Remote Control

Working voltage DC3V(Battery CR2032 )
Working Frequency 433.92 MHz
Remote Distance 40-50m
Working Temp. -20℃~55℃
Dimensions L104×W60×H9mm
Weight (N.W.) 42g




One set weight (G.W.) 225g

M4-5A CV Receiving controller

Power input DC5V-DC24V
Max Current load 5A × 4CH Max 20A
Max Output power 100W/240W/480W(5V/12V/24V)
Compatible remote M1/M2/M3/M4//M5/M6/M7/M8
Working Temp. -30℃~55℃
Dimensions L175×W44×H30(mm)
Weight (N.W.) 125g















8 Remote controllers for optional

One receiver compatible 8 different functions remote controllers. Dimmer, color temperature,RGB, RGBW, select what you want. Such as, M3, M4, M6, M7 and M8 control the receiver connected with RGB lights meanwhile, and function is 5 times than general ones.



10 remote control for 1 receiver

1 receiver can be controlled by 10 same or different RF remote at most for dimming.



RF radio frequency (RF) remote control, strong penetration ability of the wall

RF radio frequency (RF) remote control, wireless signal strong penetrating power, even if there is an obstacle in front can be controlled, the partition of remote control; ID code, independent each other.



To simplify

Well-designed remote control operation key, Useful features, rejection of complex instructions,enjoy the colorful world.

M6 mini





Low power consumption

The touch color wheel remote control is used new circuit design which will be lower power consumption, Only use CR2032 button batteries, the first one in the industry, making the remote control more lighter and thinner.

M6 mini



Humanized wall bracket

With this humanized wall bracket which can fix the remote on obviously place of wall,You will not be bothered to find the remote.



Lighter, more transparent and intuitive packing

package
