MiBoxer D5-W72 DMX512 RDM RGB+CCT LED Wall Washer Light

$120.00
In stock
SKU
5259
  • Buy 100 for $112.00 each and save 7%

Made in Shenzhen of China with high quality, 2 years warranty

We are the distributor of MiBoxer products, direct from Futlight factory, good price

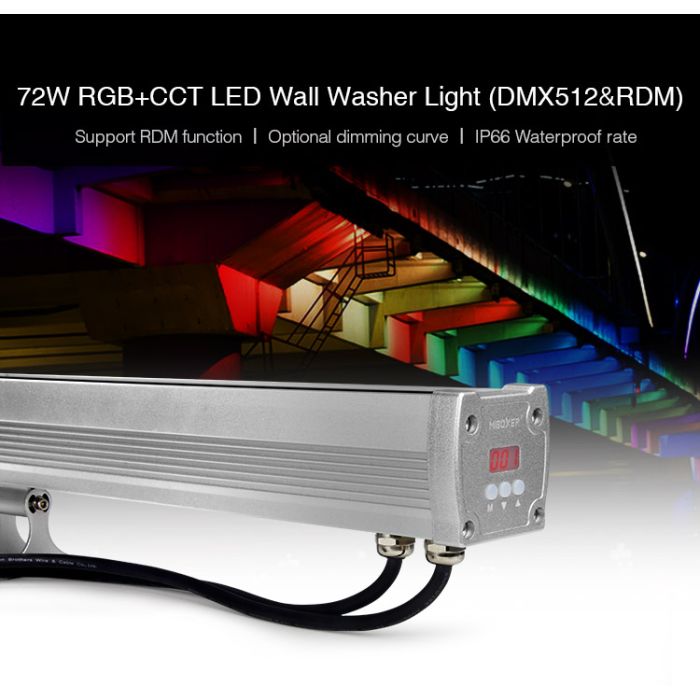

Product Name: 72W RGB+CCT LED Wall Washer Light (DMX512 & RDM)
Model No.: D5-W72
Input Voltage: AC100~240V 50/60Hz
CRI: >80
Color Temperature: 2700~6500K
Luminous Flux: R:280LM, G:540LM, B:150LM, CW:1800LM, WW:1650LM
Beam Angle: 15*60°
Communication Protocol: DMX512, DMX512 (1990), DMX512-A, RDM V1.0 (E1.20-2006 ESTA standard)
IP Rate: IP66
Working Temperature: -20~45°C
DMX Address: Occupy 5 DMX Address



Accord with DMX512 standard protocol Support RDM function

Comply with DMX512, DMX512 (1990), DMX512-A, RDM V1.0 (E1.20-2006 ESTA standard) International standard agreement

2 Dimming curves optional
Change RGBW colors freely to make smart lighting atmosphere
IP66 Waterproof rate

Excellent waterproofness make the usage more safe

Simple and fast operation

Digital display, set DMX start address through button

Rotatable bracket for easy installation

180° rotatable bracket; Adjustable randomly; Easy adjust the beam angle

High lumen LED chips

Low power consumption and luminance decrease; Bright color and high brightness

Optical lens

High lighting transmitting rate; Wide beam angle and long illumination distance

Optical lens

High lighting transmitting rate; Wide beam angle and long illumination distance

Optical lens

High lighting transmitting rate; Wide beam angle and long illumination distance


Connection Diagram

Attention: If more than 32 pcs DMX wall washer lights are connected or using the super long signal cable, you need DMX signal amplifier. Amplify signal cannot be over 5 times.


Application Scenes
