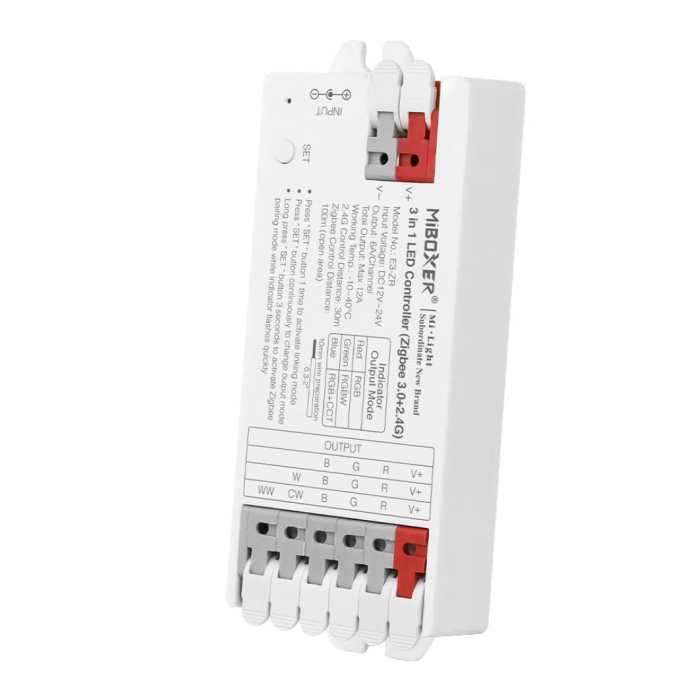

MiBoxer E3-ZR 3 in 1 LED Controller (Zigbee 3.0 +2.4G)

$11.95

In stock

SKU

2468

Buy 100 for $10.95 each and save 8%

• Tool-free instant wiring
• Product follow zigbee 3.0 standard protocol
• Zigbee Contrl distance: 100m (open area)
• Compatible with Mi-Light / MiBoxer 2.4GHz series remote
• Switching 3 output mode via one button (RGB / RGBW / RGB+CCT)

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Details

Product Parameters
Product Name: 3 in 1 LED Controller (Zigbee 3.0 +2.4G)
Model No.: E3-ZR
Input Voltage: DC12~24V
Output: 6A/Channel
Total Output: Max 12A
Communication Protocol: Zigbee 3.0 + 2.4GHz
Control Distance: Zigbee: 100m (open area) / 2.4G RF: 30m
IP Rate: –
Working Temperature: -10~40°C
Wireless Technology: Zigbee 802.15.4
Wireless Frequency: 2.400-2.480GHz

Instant wiring Tool-free

Effortless connection, saving you time and effort

Switching 3 output mode via one button

RGB \ RGBW \ RGB+CCT

2.4GHz RF Remote control (Control distance 30m)

16 Millions of colors to choose

Saturation adjustable, meet the diversified lighting

Color temperature adjustable

Brightness adjustable, smooth transition without flicker

Signal transmitting

One lighting fixtures can transmit the signals from the remote control to another lighting fixtures within 30m, as long as there is a lighting fixtures within 30m, the remote control distance can be limitless.

Modes synchronization

Different lighting fixtures can work synchronously when they are started at different times, controlled by the same remote, under same dynamic mode and within 30m distance.

PWM high frequency / low frequency

High frequency / low frequency can be switched

[Tuya Smart] APP control

Need to match Zigbee 3.0 gateway to experience more functions (Zigbee 3.0 gateway needs to be purchased separately)

Scene customization

Music rhythm

Do not disturb mode

Timing setting

Device sharing

Tap-to-Run & automation

Support third party voice control

Need to be equipped with Zigbee 3.0 gateway(needs to be purchased separately), which can control ON/OFF, brightness, colors, etc. through voice.

It can enter into Philips Hue, IKEA TRADFRI, Amazon ECHO Plus ( 2nd Gen), ECHO (4th Gen), ECHO Studio, ECHO Show (2. Gen) standard Zigbee 3.0 gateway.

Support DMX512 Controllable

Only for RGB+CCT output mode, Need DMX512 LED transmitter

LED light interface

Classic PC material high quality

Two power interfaces (Wiring port / DC5.5*2.1)

SET button

Ambience Showing
