• Powered by rail, strong magnetism
• Product follow zigbee 3.0 standard protocol
• Zigbee Contrl distance: 100m (open area)
• Compatible with Mi-Light / MiBoxer 2.4GHz series remote
• 2.4G RF Remote Control Distance: 30m
• 16 Millions of colors to choose
• Brightness and color temperature adjustable

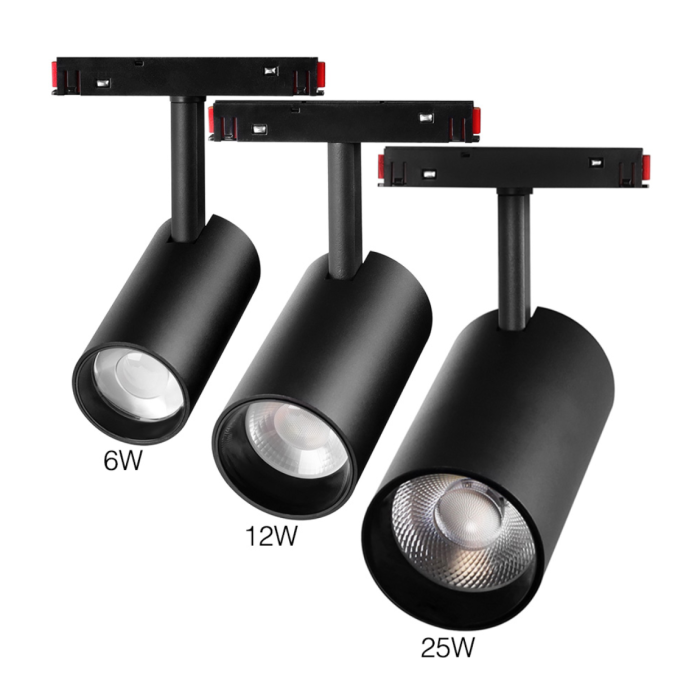

| Model No. | MS5-06B-ZR | MS5-12B-ZR | MS5-25B-ZR |
| Power | 6W | 12W | 25W |
| Input Voltage | DC48V | DC48V | DC48V |
| CRI | >80 | >80 | >90 |
| Color Temperature | 2700K~6500K | 2700K~6500K | 2700K~6500K |
| Luminous Flux | 420LM | 1000LM | 1800LM |
| Luminous Efficiency | 72LM/W | 82LM/W | 75LM/W |
| Beam Angle | 30° | 60° | 36° |
| Communication Protocol | Zigbee 3.0 + 2.4GHz | Zigbee 3.0 + 2.4GHz | Zigbee 3.0 + 2.4GHz |
| Control Distance | Zigbee: 100m (open area) 2.4G RF Remote: 30m |
Zigbee: 100m (open area) 2.4G RF Remote: 30m |
Zigbee: 100m (open area) 2.4G RF Remote: 30m |
| IP Rate | – | – | – |
| Working Temperature | -10~40°C | -10~40°C | -10~40°C |
| Wireless Technology | Zigbee 802.15.4 | Zigbee 802.15.4 | Zigbee 802.15.4 |
| Wireless Frequency | 2.400-2.480GHz | 2.400-2.480GHz | 2.400-2.480GHz |
One lighting fixtures can transmit the signals from the remote control to another lighting fixtures within 30m, as long as there is a lighting fixtures within 30m, the remote control distance can be limitless.
Different lighting fixtures can work synchronously when they are started at different times, controlled by the same remote, under same dynamic mode and within 30m distance.
Scene customization
Music rhythm
Do not disturb mode
Timing setting
Device sharing
Tap-to-Run & automation
Need DMX512 LED transmitter
