MiBoxer PZ5 5 in 1 LED Controller (Zigbee 3.0 + 2.4G) Output Max 20A
- Buy 100 for $12.99 each and save 6%
• Product follow zigbee 3.0 standard protocol
• Zigbee Contrl distance: 100m (open area)
• Compatible with Mi-Light / MiBoxer 2.4GHz series remote
• 2.4G RF Remote Control Distance: 30m
• 16 Millions of colors to choose, color temperature adjustable, brightness and saturation controllable
• Support PUSH dimming
• Switching 5 output mode via one button (Single color / Dual white / RGB / RGBW / RGB+CCT)
Made by new Zigbee 3.0 wireless transmitting technology with low power consumption, strong ability to build network automatically and anti-interference. with MiBoxer Zigbee gateway to get wireless dimming color, remote control, timing control, group control, music rhythm function. Support 2.4G RF remote control.
16 Millions of colors to choose
Color temperature adjustable
Dim brightness / Saturation
Follow Zigbee 3.0 standard protocol
Support Zigbee 3.0 remote control
2.4G Remote control distance 30m
Auto-transmitting & Synchronization
App control (Zigbee 3.0 gateway is needed)
Third party voice control (Zigbee 3.0 gateway is needed)
DMX512 controllable (Only for RGB+CCT output mode, FUTD01 transmitter is needed)

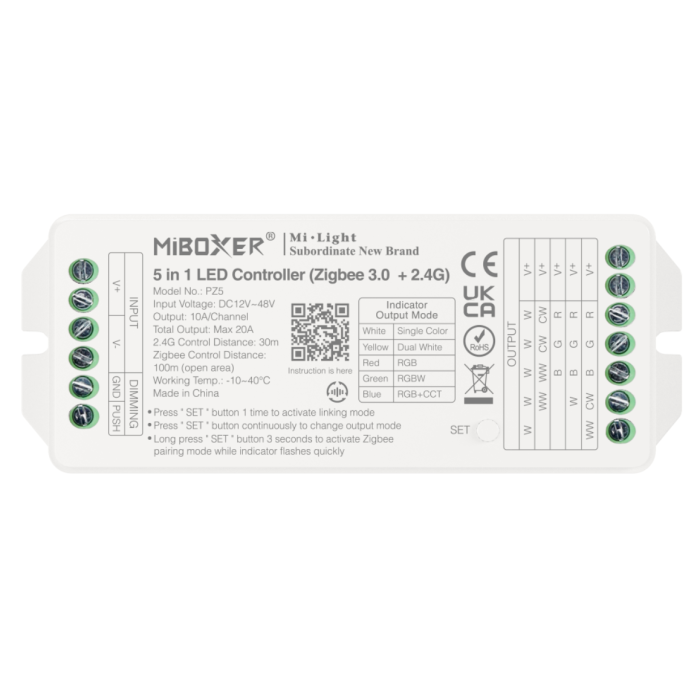

Product Name: 5 in 1 LED Controller (Zigbee 3.0 +2.4G)
Model No.: PZ5
Input Voltage: DC12~48V
Output: 10A/Channel
Total Output: Max 20A
Communication Protocol: Zigbee 3.0 + 2.4GHz
Control Distance: Zigbee: 100m (open area) / 2.4G RF: 30m
IP Rate: –
Working Temperature: -10~40°C
Wireless Technology: Zigbee 802.15.4
Wireless Frequency: 2.400-2.480GHz
Support Tuya smart app control (Zigbee 3.0 gateway is needed)
Support third party voice control (Zigbee 3.0 gateway is needed)
It can enter into Philips Hue, IKEA TRÅDFRI, AMAZON Echo Plus (2nd Gen), Echo (4th Gen), Echo Studio, Echo show (2.Gen) standard zigbee 3.0 gateway
Connection Diagram
single color
Dual white
RGB
RGBW
RGB+CCT
