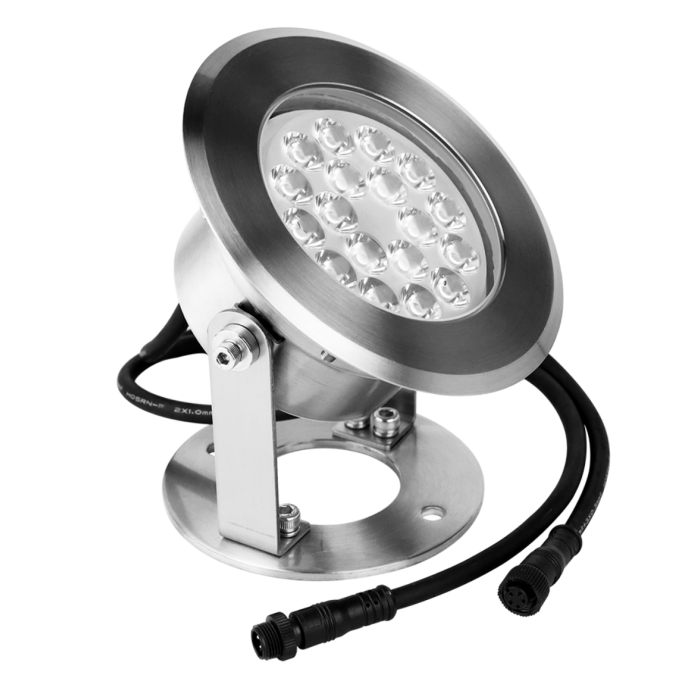

MiBoxer UW4-09A-XL DMX512 9W RGBW LED underwater light
- Buy 100 for $33.50 each and save 8%
• Editing address automatically
• Compatible and extend DMX512 (1990) signal protocol
• Parallel control, support 1024 channel
• High accurate decoding for DMX signal(200K-750Kbps)
• IP68 waterproof
Product Name: 9W RGBW LED Underwater Light (DMX512)
Model No.: UW4-09A-XL
Input Voltage: DC24V
Power: 9W
PF: –
CRI: >80
Color: RGB+White color (2700K)
Luminous Flux: 680LM
Beam Angle: 15°
IP Rate: IP68
Working Temperature: -20~45°C
Material: 304 stainless steel
Model No.: FIR-DMX-XL
Working Voltage: DC12V~24V
Working Temp.: -20~45°C
IP Rate: IP66
Set up address of first light automatically.
Connect DMX512 console with light, address of first light is 001-004, the second light is 005-008, the third light is 009-012, etc….
Remark: first light is green color, the rest are red color once address had set up successfully
Working Voltage: DC12V~24V
DMX (RS-485) Signal Input
DMX (RS-485) Signal Output
Connection Device: Max 128PCS
Working Temp.: -20~45°C
IP Rate: IP66
Use it once whole connection cable is over 300m
Cable Length: 1m
MateriaI: Rubber cable, nylon connector
IP Rate: IP67
It’s cable to wire with power supply
One cable support
25pcs 3W lights
15pcs 5W lights
12pcs 9W lights
6pcs 24W lights
Model No: AM-DM-12FN5C
Cable Length: 1m
MateriaI: Rubber cable, nylon connector
IP Rate: IP67
Connect with DMX console
Model No: AM-DM-12DN53
Cable Length: 3m
MateriaI: Rubber cable, nylon connector
IP Rate: IP67
Extend distance between lights
Model No: AM-DM-12DN5D
Cable Length: 0.17m
MateriaI: Rubber cable, nylon connector
IP Rate: IP67
Wiring 12V and 24V lights together
