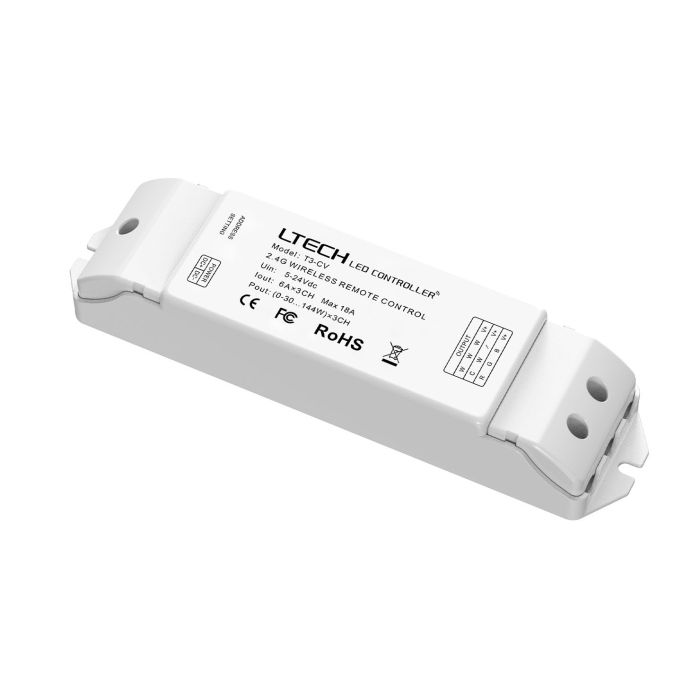

LTech T3-CV wireless RGB LED synchronization receiver controller

$31.75
In stock
SKU
1995
  • Buy 31 for $28.75 each and save 9%

LTech T3-CV

Made in Zhuhai, reliable quality, genuine version, not copycat

Direct from factory, good price

DC 5~24V safe low working voltage

RGB triple color control

T3-CV cann't work as stand-alone unit, you need to buy WiFi-103, or T3M control remote to complete the control system

LTech T3-CV

Working voltage: DC 5~24V

Maximum current load: 6A×3CH Max Class 2

Maximum output power: 75W/180W (12V/24V)

Compatible remote control: T3M

Remote distance: 25 meters

Working temperature: -20°C~40°C

Dimension: L175 × W44 × H30mm

Features:

  • With either remote, an unlimited number of receivers can be controlled within each zone. Simplify your installation and eliminate wires by using multiple receivers.
  • Using the remote, save favorite settings to a memory function and restore them with the push of a button.
  • 6 amps per channel maximum load.
  • Indicator light on remote displays current color of RGB lighting and blinks to confirm commands.
  • Power off memory function.
  • Radio frequency remote control works through walls with effective range of up to 100 feet. You do not need to connect the wireless receivers to each other or the remote control. Just connect your lights to the wireless receivers.


T3-CV RGB LED receiver can control
RGB LED flexible strips of either 12 or 24V DC. A number of T3-CV’s can be used simultaneously so as to have multiple rolls RGB LED flexible strips in the same setup.

It is important to note that to control all of the T3-CV’s and get them to all to the same thing at the same time, you will need a controller of some kind. To do this you will need to use either a
T3-5A RGB LED controller or the T3M RGB LED control remote. If you are using the T3M control remote just pair the T3M control remote with each and every T3-CV.



T3-CV wiring diagram:
