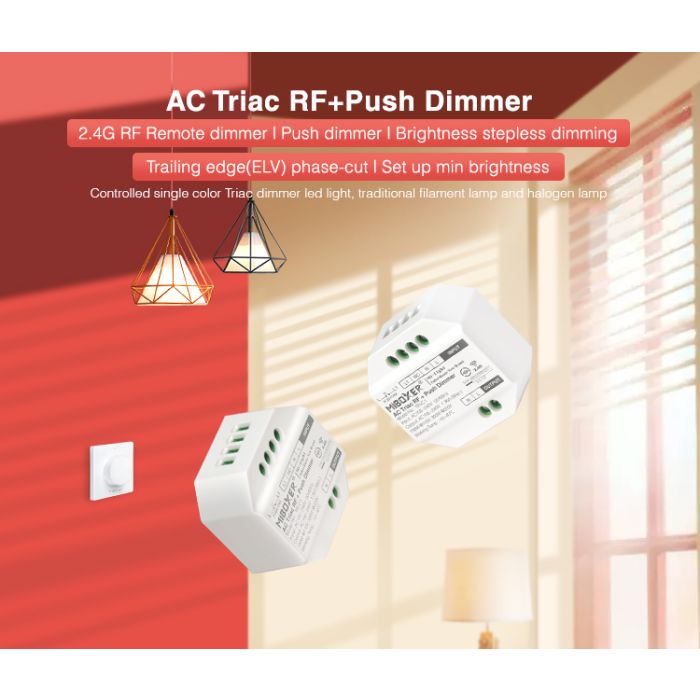

TRI-C1 MiBoxer AC triac RF+Push dimmer
- Buy 100 for $11.25 each and save 13%
2.4GHz RF remote push trailing edge(ELV) phase-cut triac dimmer
Made in Shenzhen of China with high quality, 2 years warranty
We are distributor of MiBoxer&MiLight products, direct from factory, good price
Product Name: AC Triac Dimmer (2.4G+Push)
Model No.: TRI-C1
Input Voltage: AC100~240V 50/60Hz
Output Voltage: AC100~240V
Output Current: Max 1.36A
Output Power: 150W @110V；300W @220V
Dim Method: RF wireless dimming, Push dimming
Control Distance: 30 meters
Working Temperature: -10~40℃
Have switch to test temperature and over heat / load protection
it only support to turn on/off light and can not dim light once this mode had been activated
One lighting fixtures can transmit the signals from the remote control to another lighting fixtures within 30m, as long as there is a lighting fixtures within 30m, the remote control distance can be limitless.
Stepless dimming, without any screen flickering
Long press：increase/decrease brightness (Long press and release, then long press to change)
Connection Diagram
Installation Diagram
Supports standard bottom boxes with depth above 50mm
