• Product follow zigbee 3.0 standard protocol
• Zigbee Contrl distance: 100m (open area)
• Compatible with Mi-Light / MiBoxer 2.4GHz series remote
• 2.4G RF Remote Control Distance: 30m
• Brightness and color temperature adjustable
• Switching 2 output mode via one button (Single color / Dual white)
Product Parameters

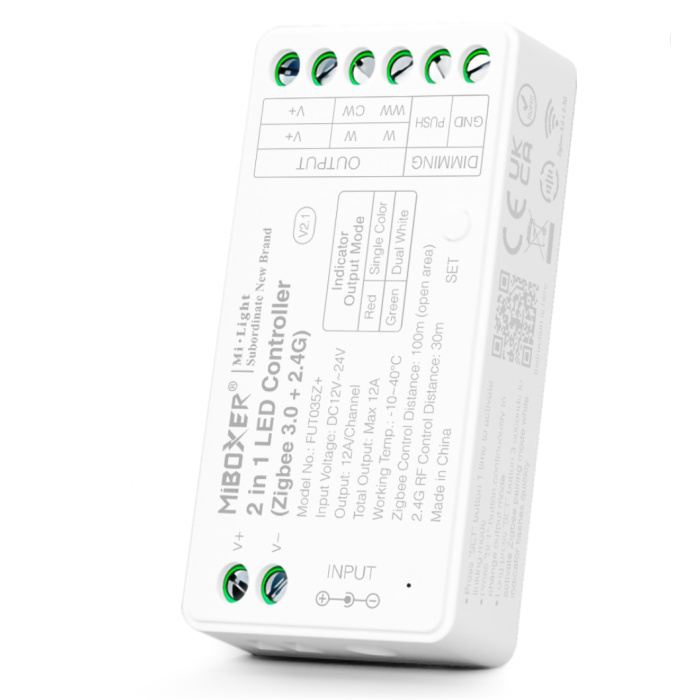

Product Name: 2 in 1 LED Controller (Zigbee 3.0 +2.4G)
Model No.: FUT035Z+
Input Voltage: DC12~24V
Output: 12A/Channel
Total Output: Max 12A
Communication Protocol: Zigbee 3.0 + 2.4GHz
Control Distance: Zigbee: 100m (open area) / 2.4G RF: 30m
IP Rate: –
Working Temperature: -10~40°C
Wireless Technology: Zigbee 802.15.4
Wireless Frequency: 2.400-2.480GHz
Scene customization
Do not disturb mode
Timing setting
Device sharing
Tap-to-Run & automation
Signal transmitting
One lighting fixtures can transmit the signals from the remote control to another lighting fixtures within 30m, as long as there is a lighting fixtures within 30m, the remote control distance can be limitless.
Support Push dimmable
Stepless dimming, without any screen flickering
